ACO MultiDrain M100D 0.0 Channel Galvanised Rail 1m x 135 x 150mm

SKU: ACO23000

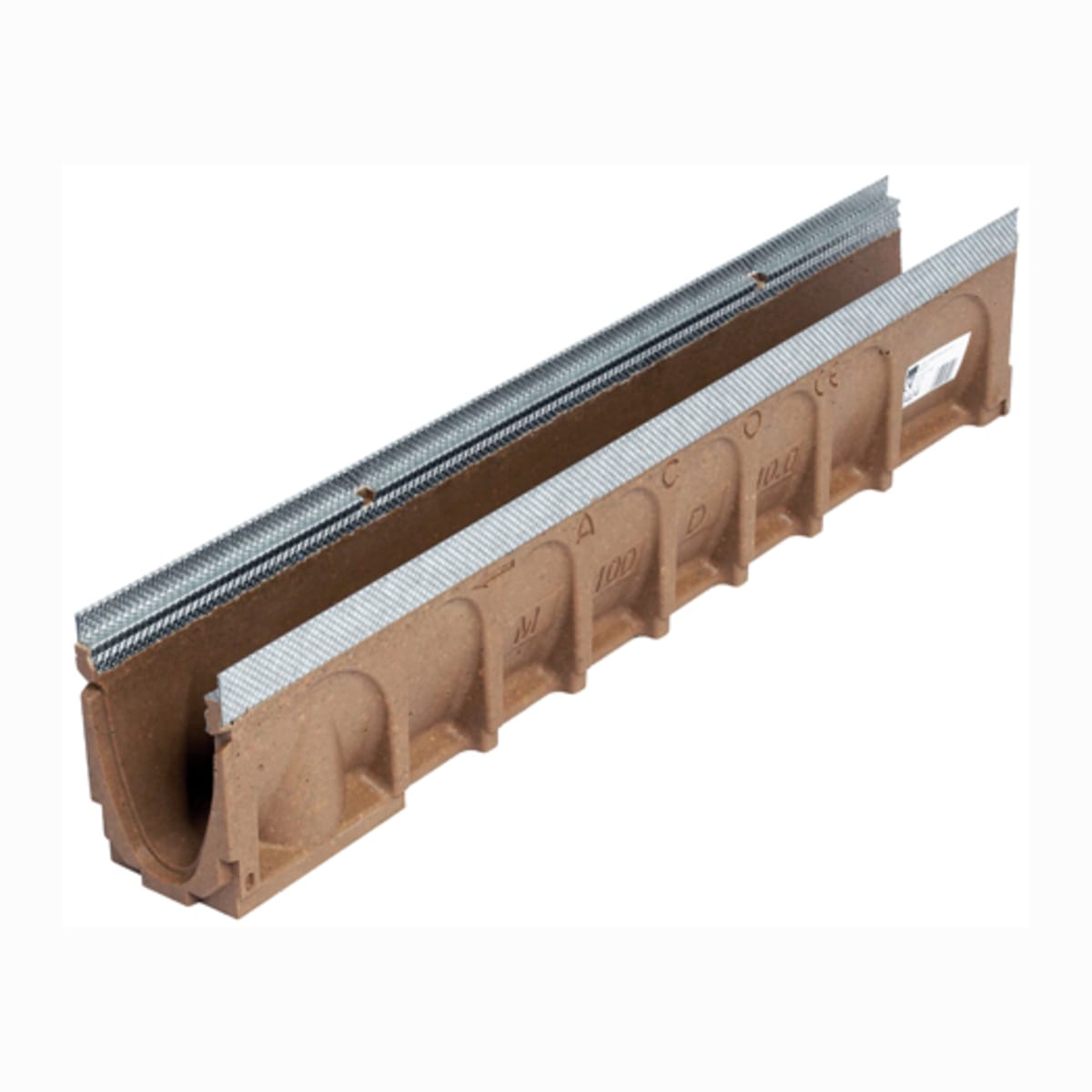

The ACO MultiDrain™ M100D No. 0.0 Channel with Galvanised Rail 1000 x 135 x 150mm (L x W x D), is manufactured from Vienite®, a polymeric based recycled material. Strong and lightweight design, improves stability and anchors product into concrete surround, which provides high chemical resistance. The channel is provided with integral galvanised steel protective edge rails. For enhanced durability these rails are manufactured from UltraSTEEL™, a unique material that has improved strength over plain steel. Channels are for use with ACO Drainlock™ bar-less locking gratings and covers.

Features & benefits
  • CE marked to Load Class D 400 (Not suitable for carriageways of public roads or motorways)
  • Sealant groove for simple watertight installations
  • Galvanised edge rails for improved strength and bonding between channel and surface materials
  • Strong and lightweight design, improves stability and anchors product into concrete surround
  • V shaped channel bore improves speed of water flow and promotes self cleansing
IDACO23000 Drainage > Linear Drainage > Commercial > ACO MultiDrain M100D 0.0 Channel Galvanised Rail 1m x 135 x 150mm

Please log in/register  to save items.

The ACO MultiDrain™ M100D No. 0.0 Channel with Galvanised Rail 1000 x 135 x 150mm (L x W x D), is manufactured from Vienite®, a polymeric based recycled material. Strong and lightweight design, improves stability and anchors product into concrete surround, which provides high chemical resistance. The channel is provided with integral galvanised steel protective edge rails. For enhanced durability these rails are manufactured from UltraSTEEL™, a unique material that has improved strength over plain steel. Channels are for use with ACO Drainlock™ bar-less locking gratings and covers.

Features & benefits
  • CE marked to Load Class D 400 (Not suitable for carriageways of public roads or motorways)
  • Sealant groove for simple watertight installations
  • Galvanised edge rails for improved strength and bonding between channel and surface materials
  • Strong and lightweight design, improves stability and anchors product into concrete surround
  • V shaped channel bore improves speed of water flow and promotes self cleansing

Specifications
Product Name ACO MultiDrain M100D 0.0 Channel Galvanised Rail 1m x 135 x 150mm
Brand ACO
Manufacturer Name ACO
Manufacturer Part Number 23000
EAN 5030810230002
Compliance Approvals CE marked and fully certified to Load Class D 400 BS EN 1433:2002
Materials Vienite
Steel
Commercial Or Domestic Use Commercial
Range Channel Drains
Model Number 23000
Colour Silver
Application External
Pack Quantity 1
Country Of Origin United Kingdom
Finish Galvanised
Recyclable Yes
Product Width 135  mm
Product Weight 13.2  kg
Product Length 1000  mm
Product Depth 150  mm
Moisture Resistant Yes
