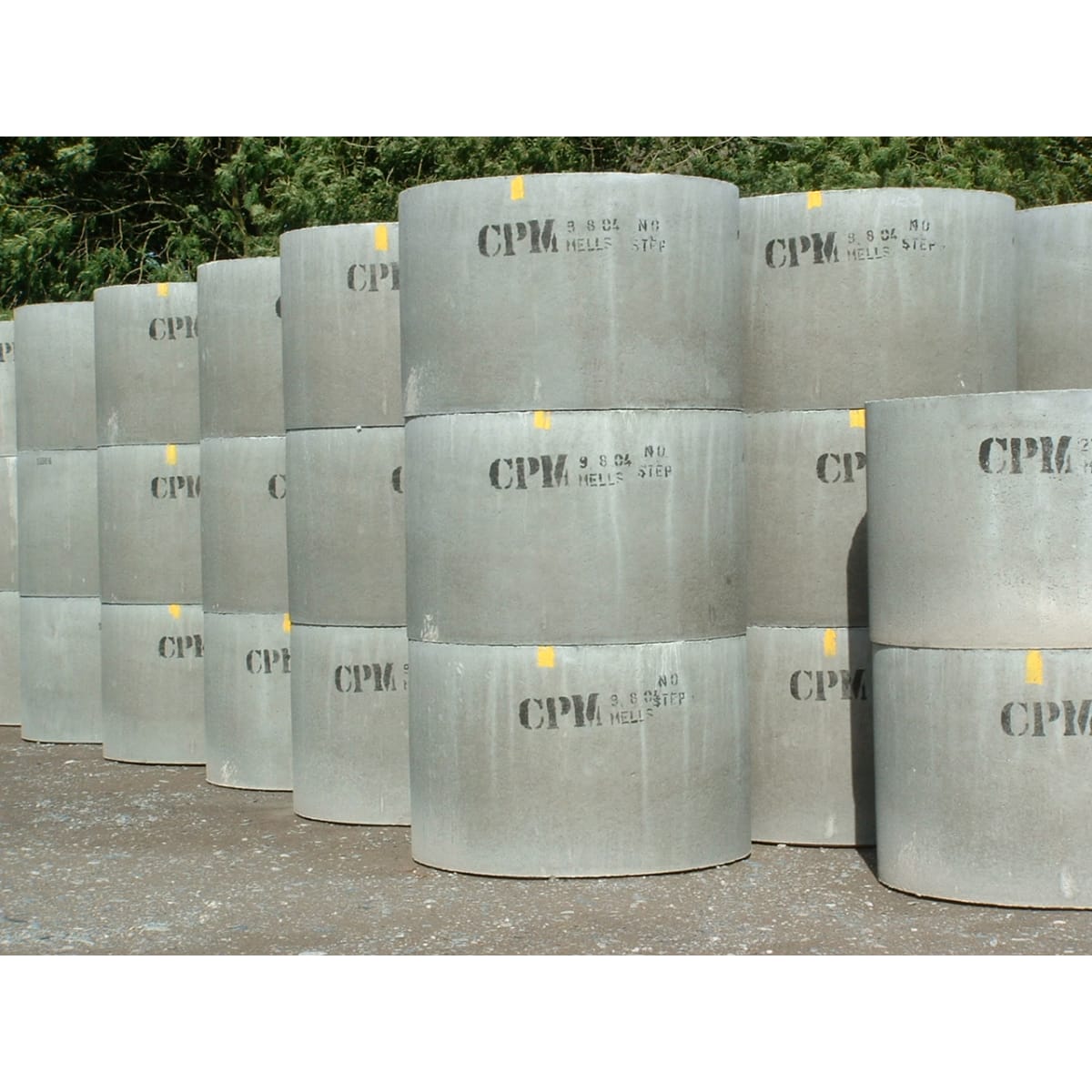

CPM Precast Concrete Manhole Chamber Ring 1350 x 750mm

SKU: DRCGR095
The CPM Precast Concrete Manhole Chamber Ring 1350 x 750mm (Dia x D) provides access to the surface water drainage system. It is manufactured from concrete. Designed with tongue and groove joints to accommodate flexible jointing strip or cement mortar. The inner surface of the chamber ring is designed with double steps.
Features & benefits
  • High compressive strength withstanding heavy traffic
  • Marshalls CPM manhole chamber sections are supplied with 3 nominal 50mm diameter holes for lifting purposes
  • Available in BIM (Building Information Modelling)
IDDRCGR095 Drainage > Concrete Drainage > Chamber Rings > CPM Precast Concrete Manhole Chamber Ring 1350 x 750mm

You need to be logged in to save items to project lists

The CPM Precast Concrete Manhole Chamber Ring 1350 x 750mm (Dia x D) provides access to the surface water drainage system. It is manufactured from concrete. Designed with tongue and groove joints to accommodate flexible jointing strip or cement mortar. The inner surface of the chamber ring is designed with double steps.
Features & benefits
  • High compressive strength withstanding heavy traffic
  • Marshalls CPM manhole chamber sections are supplied with 3 nominal 50mm diameter holes for lifting purposes
  • Available in BIM (Building Information Modelling)

Specifications
Product Name CPM Precast Concrete Manhole Chamber Ring 1350 x 750mm
Brand CPM
Manufacturer Name Marshalls CPM
Manufacturer Part Number 20230
Compliance Approvals BS EN1917:2002 BS5911-3:2010
Materials Precast Concrete
Commercial Or Domestic Use Commercial
Range Chamber Rings
Application Concrete Drainage
Pack Quantity 1
Country Of Origin United Kingdom
Product Weight 810  kg
Product Depth 750  mm
Diameter 350  mm
