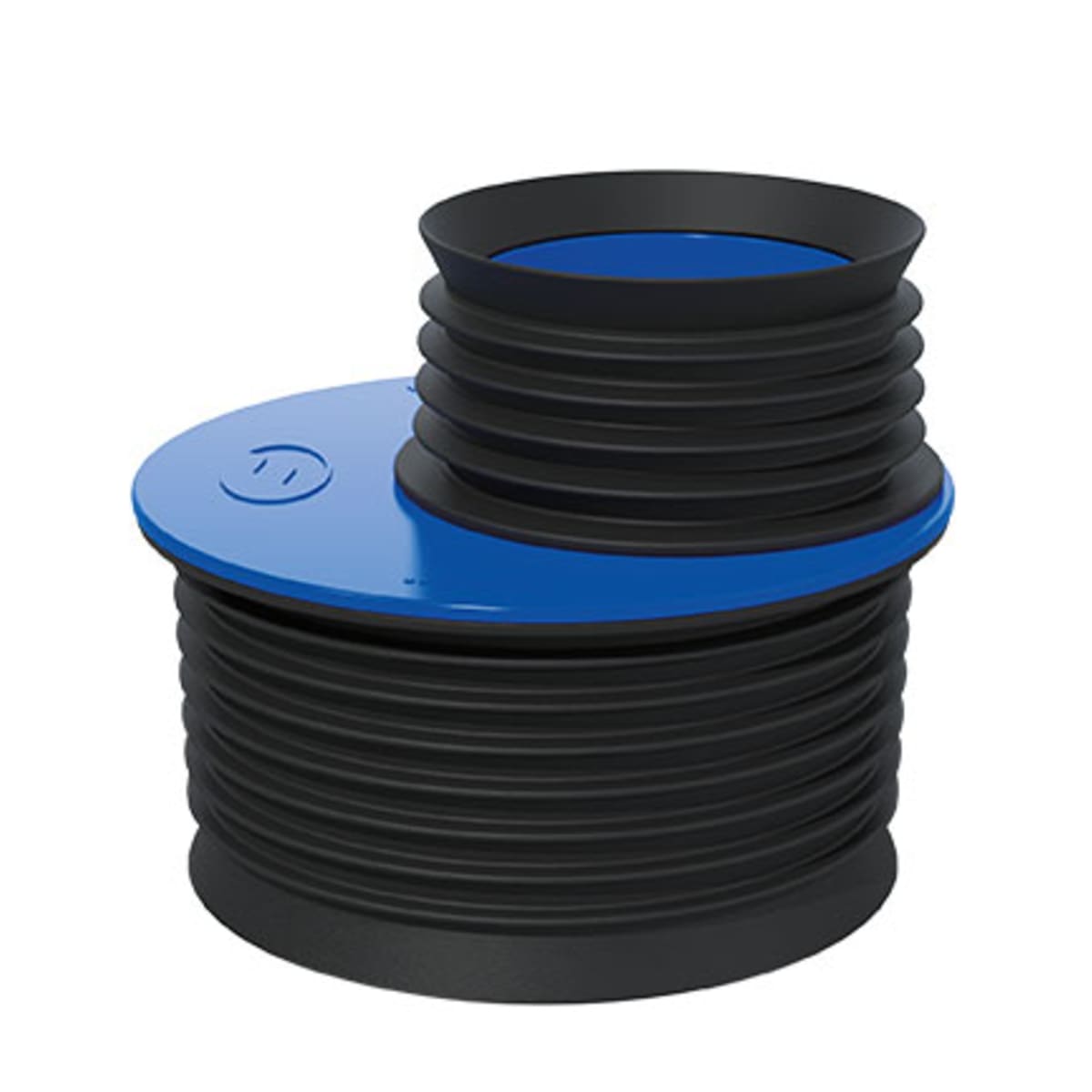

Fernco IC100-150P Icon Internal Pushfit Coupling DN100-DN150 99-103/148-153mm
SKU: DRF1C100
Fernco manufactures a wide range of couplings that connect rainwater and wastewater pipelines using the internal surface, called ‘Icon’ (internal connection) couplings. These coupling are perfect when a pipe to be connected on to is encased in concrete or surrounded by another hard material, as they allow the installer to use the internal surace of the pipes to make the connection opposed to the user excavating around the external surface of th epipe to make a connection with a traditional coupling. This change in process saves the user hours in additional unplanned labour time.
Features & benefits
- Watertight connection on any pipe material
- Connects pipes of differing or irregular outside diameters
- Significantly reduces labour time for connecting problem pipes
- No need to expose external surface of pipe
- Provides shear load protection
IDDRF1C100
Drainage > Flexible Couplers > Icon Couplers > Fernco IC100-150P Icon Internal Pushfit Coupling DN100-DN150 99-103/148-153mm
https://www.civilsandutilities.com/p/flexseal-icon-internal-pushfit-coupling-dn100-dn150-99-103148-153mm-DRF1C100
Fernco manufactures a wide range of couplings that connect rainwater and wastewater pipelines using the internal surface, called ‘Icon’ (internal connection) couplings. These coupling are perfect when a pipe to be connected on to is encased in concrete or surrounded by another hard material, as they allow the installer to use the internal surace of the pipes to make the connection opposed to the user excavating around the external surface of th epipe to make a connection with a traditional coupling. This change in process saves the user hours in additional unplanned labour time.
Features & benefits
- Watertight connection on any pipe material
- Connects pipes of differing or irregular outside diameters
- Significantly reduces labour time for connecting problem pipes
- No need to expose external surface of pipe
- Provides shear load protection
Specifications
| Product Name | Fernco IC100-150P Icon Internal Pushfit Coupling DN100-DN150 99-103/148-153mm |
| Brand | Fernco |
| Manufacturer Name | Flexseal Couplings Ltd |
| Manufacturer Part Number | IC100-150P |
| EAN | 5031485003724 |
| Compliance Approvals | WRc Approved |
| Materials |
ABS plastic
Ethylene Propylene Diene Monomer Rubber |
| Colour | Blue |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Product Width | 172 mm |
| Product Weight | 0.49 kg |
| Product Height | 172 mm |
| Product Length | 141 mm |
| Product Depth | 172 mm |
