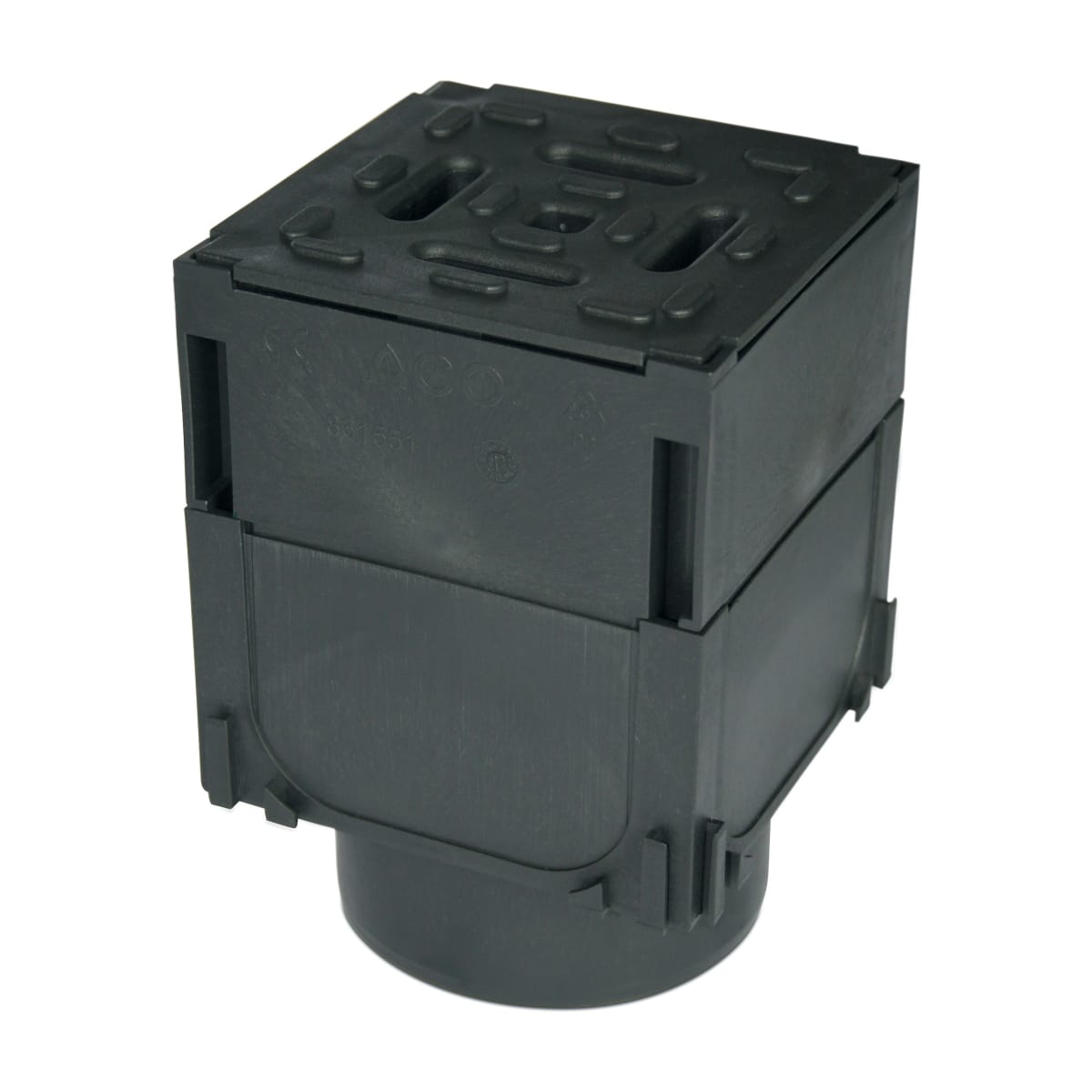

ACO HexDrain Brickslot Corner Unit Grating Outlet 125 x 125 x 193mm
SKU: ACO19560
The ACO HexDrain® Brickslot Corner Unit with Plastic Slotted Grating and Vertical Outlet (L x W x D) Black, is ideal for domestic applications such as garage thresholds, patios and paths, pedestrian precincts.
Features & benefits
- Ideal drainage channel for domestic applications
- Has a removable spigot for connection to 110mm PVC-U pipe
- Has a 4-way channel connection
- Allows access to the HexDrain Brickslot system for maintenance and cleaning
- Load Class A 15
IDACO19560
Drainage > Water Management > Light-Duty Linear Drainage > ACO HexDrain Brickslot Corner Unit Grating Outlet 125 x 125 x 193mm
https://www.civilsandutilities.com/p/aco-hexdrain-brickslot-corner-unit-125-x-125mm-ACO19560
The ACO HexDrain® Brickslot Corner Unit with Plastic Slotted Grating and Vertical Outlet (L x W x D) Black, is ideal for domestic applications such as garage thresholds, patios and paths, pedestrian precincts.
Features & benefits
- Ideal drainage channel for domestic applications
- Has a removable spigot for connection to 110mm PVC-U pipe
- Has a 4-way channel connection
- Allows access to the HexDrain Brickslot system for maintenance and cleaning
- Load Class A 15
Specifications
| Product Name | ACO HexDrain Brickslot Corner Unit Grating Outlet 125 x 125 x 193mm |
| Brand | HexDrain |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 319560 |
| EAN | 5030813195605 |
| Compliance Approvals | CE marked and fully certified to Load Class A 15 BS EN 1433:2002 |
| Materials | Plastic |
| Commercial Or Domestic Use | Domestic |
| Range | Corner Units |
| Model Number | 319560 |
| Colour | Black |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | Germany |
| Recyclable | Yes |
| Product Width | 125 mm |
| Product Weight | 0.4 kg |
| Product Length | 125 mm |
| Product Depth | 193 mm |
| Moisture Resistant | Yes |
