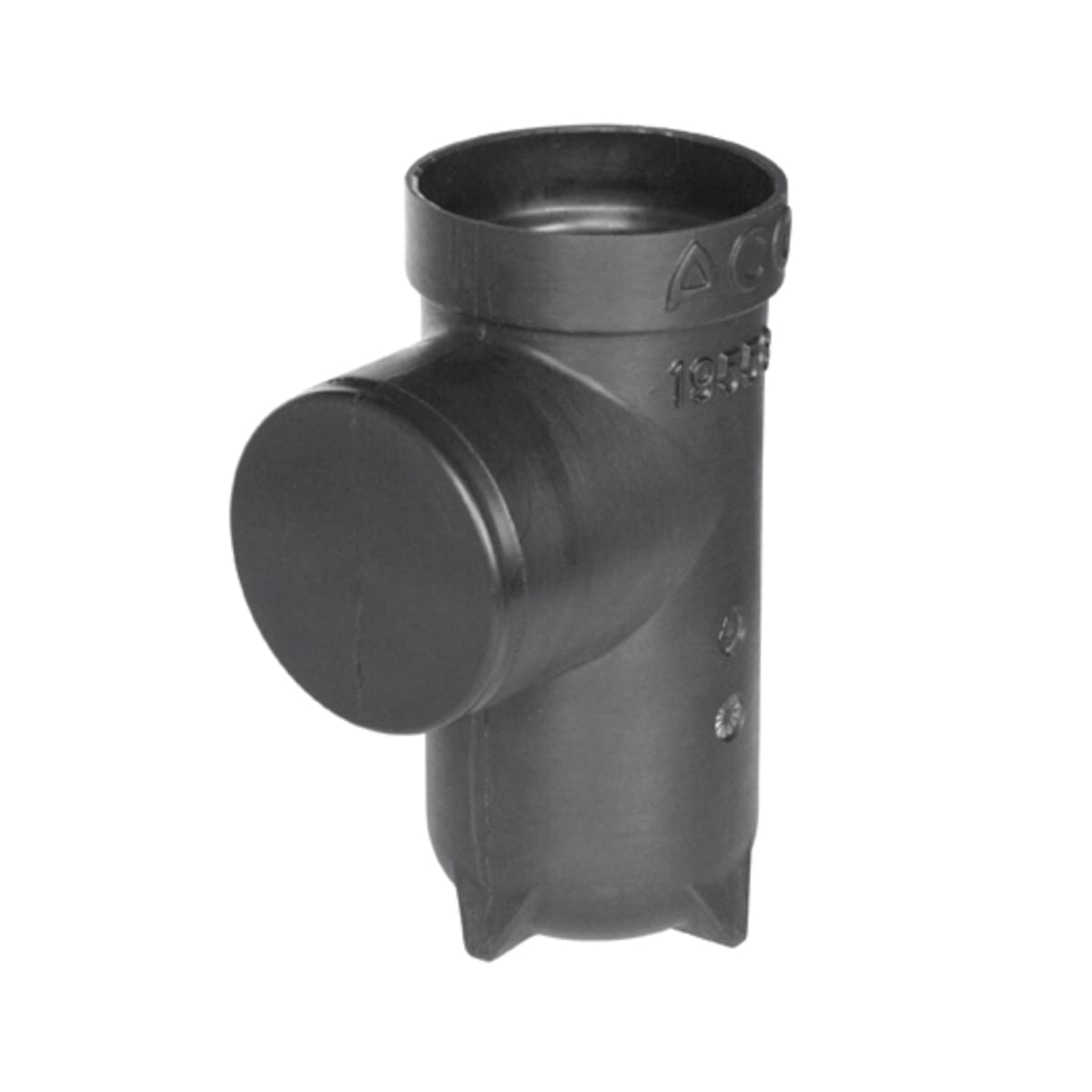

ACO HexDrain Brickslot Sump Unit 174 x 118 x 250mm Black

SKU: ACO19558
IDACO19558 Drainage > Linear Drainage > Commercial > ACO HexDrain Brickslot Sump Unit 174 x 118 x 250mm Black

Pricing available upon sign in

Alternatively, contact a branch to order

Please log in/register  to save items.

Product information

The ACO HexDrain Brickslot Sump Unit 174 x 118 x 250mm (L x W x D) Black, is ideal for domestic applications such as garage thresholds, patios and paths, pedestrian precincts. Sump unit with Ø110mm outlet spigot invert height from F.G.L = 345mm. The sump unit should be purchased together with the ACO Corner Unit with Slotted Grating and Vertical Outlet (product code ACO19560).

Features & benefits
  • Ideal drainage channel for domestic applications
  • Has a removable spigot for connection to 110mm PVC-U pipe
  • Sump Unit 110mm outlet spigot invert height from F.G.L = 345mm
  • For use with ACO HexDrain and ACO HexDrain Brickslot
  • Load Class A 15
Specifications
Product Name ACO HexDrain Brickslot Sump Unit 174 x 118 x 250mm Black
Brand ACO
Manufacturer Name ACO
Manufacturer Part Number 19558
EAN 5030810195585
Compliance Approvals CE marked and fully certified to load Class A 15 BS EN 1433:2002
Materials Plastic
Commercial Or Domestic Use Both
Range Sump Units
Model Number 19558
Colour Black
Application External
Pack Quantity 1
Country Of Origin United Kingdom
Recyclable Yes
Product Width 118  mm
Product Weight 0.3  kg
Product Length 174  mm
Product Depth 250  mm
Moisture Resistant Yes
