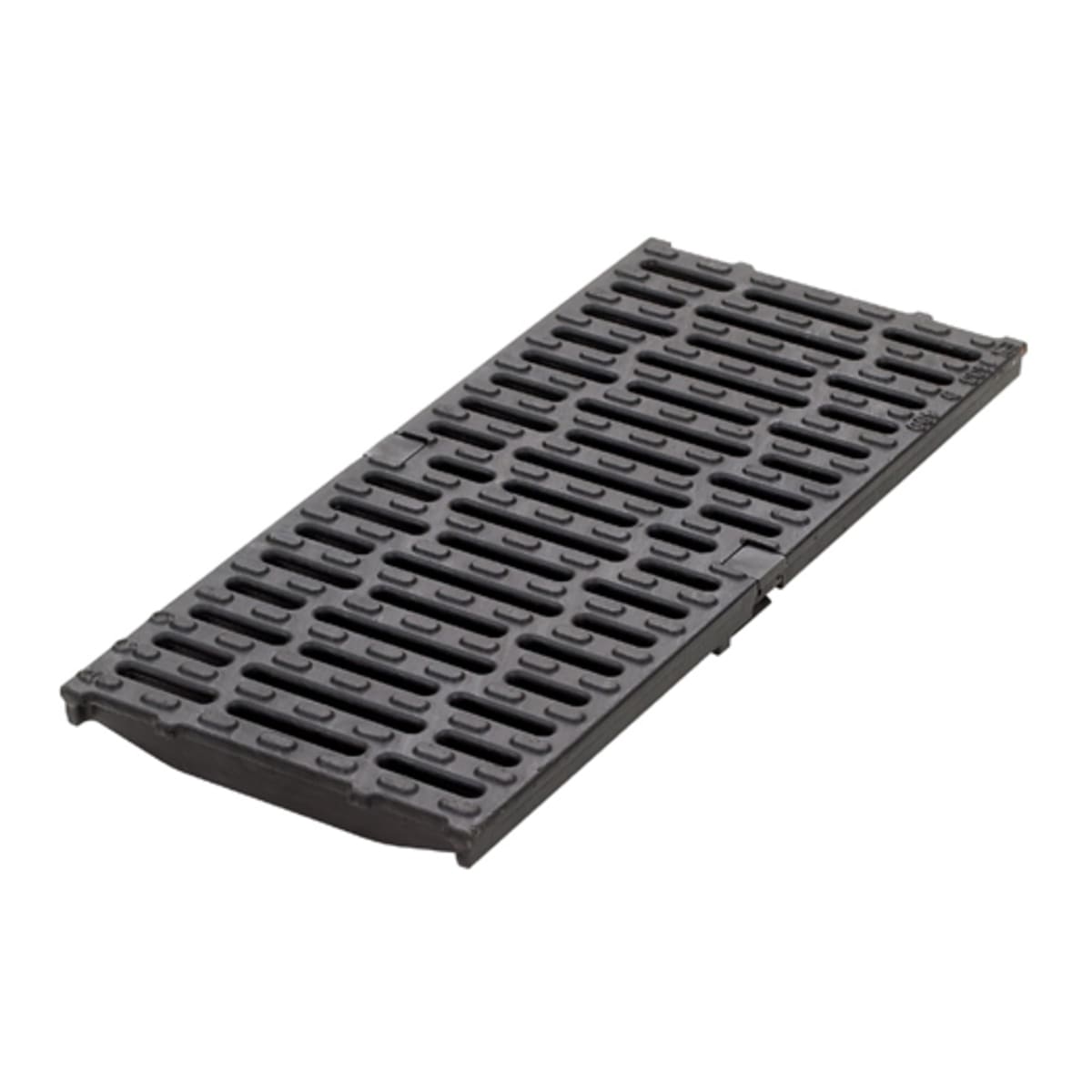

ACO MultiDrain M200PPD Heelguard Grate 500 x 223 x 32mm Ductile Iron
SKU: ACO23221
The ACO MultiDrain™ M200PPD Heelguard™ Grating 23221DL 500 x 223 x 32mm (L x W x D) Ductile Iron is part of the "Heel-friendly" range with slot widths up to and including 10mm. Not suitable for carriageways of public roads or motorways.
Features & benefits
- System fully certified and CE marked to Load Class D 400 BS EN 1433:2002
- Bar-less locking device provides for quick and simple installation of gratings
- Part of ‘Heel-friendly’ range products with slot widths up to and including 10mm
- Suitable for most pedestrian applications
- Security locking is available
IDACO23221
Drainage > Water Management > Commercial Linear Drainage > ACO MultiDrain M200PPD Heelguard Grate 500 x 223 x 32mm Ductile Iron
https://www.civilsandutilities.com/p/aco-multidrain-heelguard-grating-500-x-223-x-32mm-black-ACO23221
The ACO MultiDrain™ M200PPD Heelguard™ Grating 23221DL 500 x 223 x 32mm (L x W x D) Ductile Iron is part of the "Heel-friendly" range with slot widths up to and including 10mm. Not suitable for carriageways of public roads or motorways.
Features & benefits
- System fully certified and CE marked to Load Class D 400 BS EN 1433:2002
- Bar-less locking device provides for quick and simple installation of gratings
- Part of ‘Heel-friendly’ range products with slot widths up to and including 10mm
- Suitable for most pedestrian applications
- Security locking is available
Specifications
| Product Name | ACO MultiDrain M200PPD Heelguard Grate 500 x 223 x 32mm Ductile Iron |
| Brand | MultiDrain |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 23221 |
| EAN | 5030810232211 |
| Compliance Approvals | CE marked and fully certified to Load Class D 400 BS EN 1433:2002 |
| Materials | Ductile Iron |
| Commercial Or Domestic Use | Commercial |
| Range | Heelguard Grate |
| Model Number | 23221 |
| Colour | Black |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | China |
| Recyclable | Yes |
| Product Width | 223 mm |
| Product Weight | 7.5 kg |
| Product Length | 500 mm |
| Product Depth | 32 mm |
| Moisture Resistant | Yes |
