ACO MultiDrain M150D 10.0 Channel Galvanised Rail 1m x 185 x 260mm

SKU: ACO23151
IDACO23151 Drainage > Linear Drainage > ACO MultiDrain M150D 10.0 Channel Galvanised Rail 1m x 185 x 260mm

Pricing currently unavailable

Please contact a branch to order

Please log in/register  to save items.

Product information

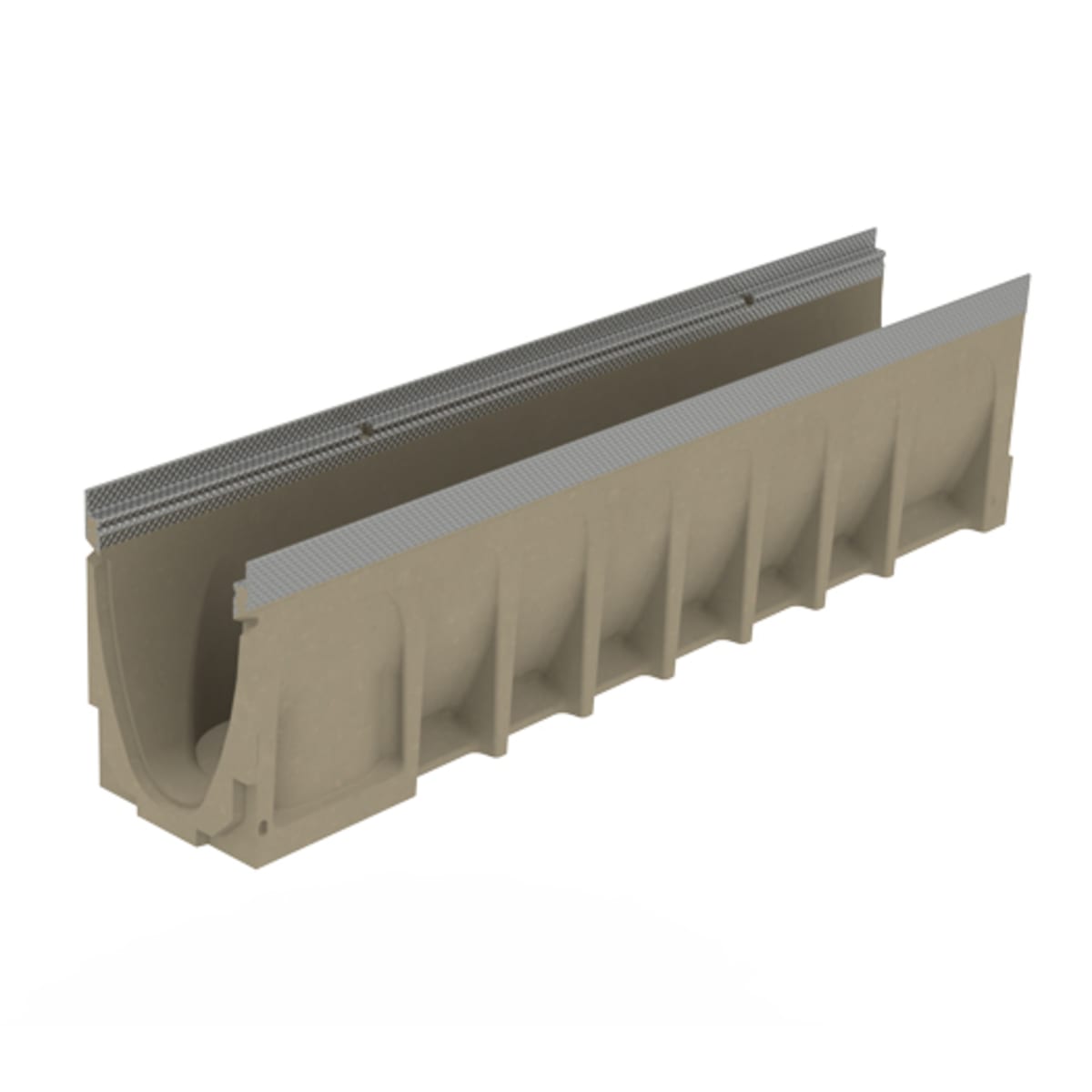

The ACO MultiDrain™ M150D No. 10.0 Channel with Galvanised Rail 1000 x 185 x 260mm (L x W x D), is manufactured from Vienite®, a polymeric based recycled material. Strong and lightweight design, improves stability and anchors product into concrete surround, which provides high chemical resistance. The channel is provided with integral galvanised steel protective edge rails. For enhanced durability these rails are manufactured from UltraSTEEL™, a unique material that has improved strength over plain steel. Channels are for use with ACO Drainlock™ bar-less locking gratings and covers.

Features & benefits
  • CE marked to Load Class D 400 (Not suitable for carriageways of public roads or motorways)
  • Sealant groove for simple watertight installations
  • Galvanised edge rails for improved strength and bonding between channel and surface materials
  • Strong and lightweight design, improves stability and anchors product into concrete surround
  • Channel supplied with a preformed Ø160mm knock-out for vertical outlet
Specifications
Product Name ACO MultiDrain M150D 10.0 Channel Galvanised Rail 1m x 185 x 260mm
Brand ACO
Manufacturer Name ACO
Manufacturer Part Number 23151
EAN 5030810231511
Compliance Approvals CE marked and fully certified to Load Class D 400 BS EN 1433:2002
Materials Vienite
Steel
Commercial Or Domestic Use Commercial
Range Channel Drains
Model Number 23151
Colour Buff, Silver
Application External
Pack Quantity 1
Country Of Origin United Kingdom
Recyclable Yes
Product Width 185  mm
Product Weight 25  kg
Product Length 1  m
Product Depth 260  mm
Moisture Resistant Yes
