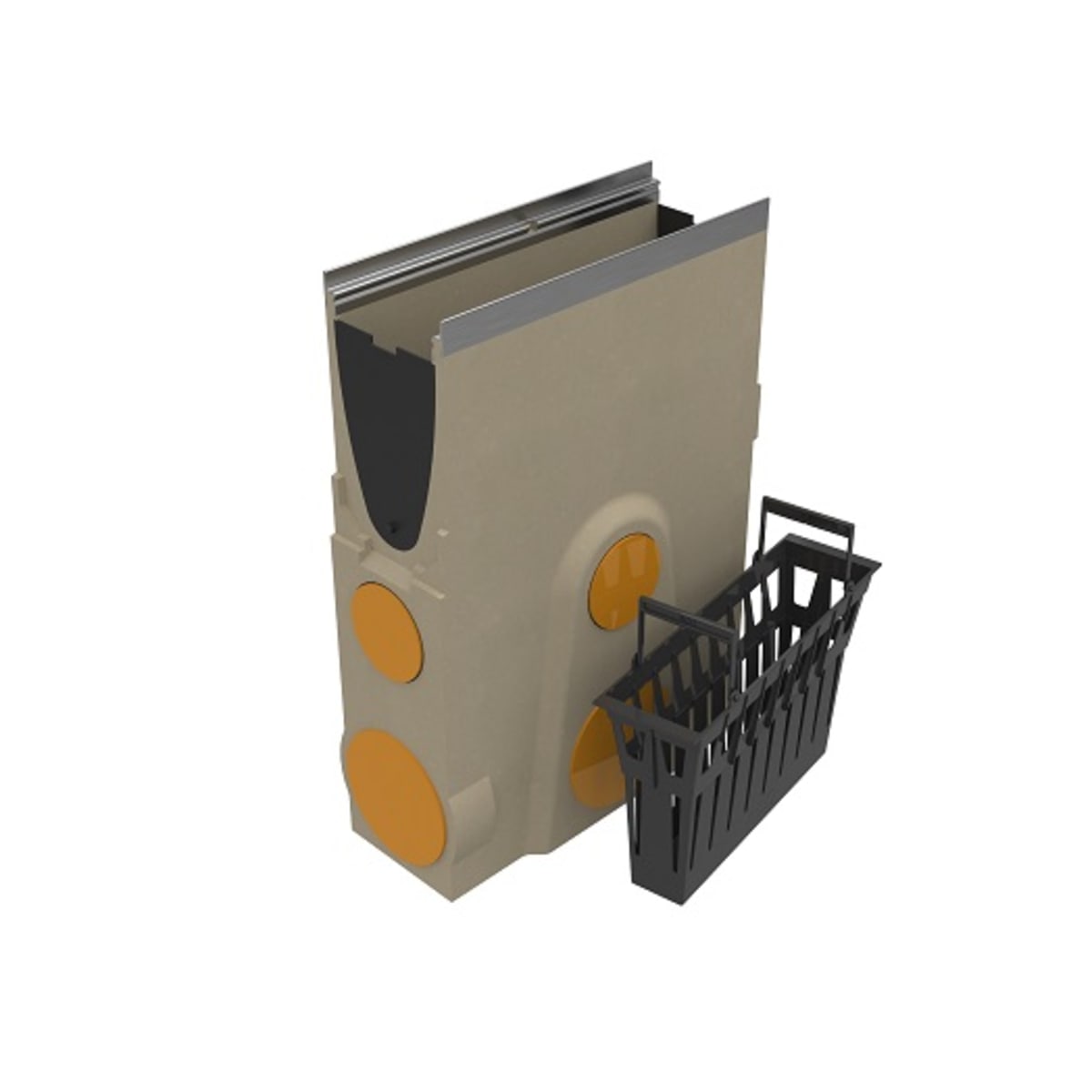

ACO MultiDrain M150D Universal Sump Unit 500 x 185 x 735mm
SKU: ACO23158
The ACO MultiDrain™ M150D Universal Sump Unit with UltraSTEEL™ Galvanised Edge Rail and Plastic Silt Bucket 500 x 185 x 735mm (L x W x D) is manufactured from Vienite®, a new polymeric based recycled material. They have 150mm internal width with UltraSTEEL™ galvanised steel protective edge rail. The channels are for use with ACO Drainlock™ bar-less locking gratings and covers.
Features & benefits
- Universal sump allows for connection to all channels
- Outlet options for Ø110mm and Ø160mm pipes and foul air traps
- Plastic silt bucket provided with each unit
- Triple lipped seals for watertight connections
- Has galvanised steel protective edge rail
IDACO23158
Drainage > Water Management > Commercial Linear Drainage > ACO MultiDrain M150D Universal Sump Unit 500 x 185 x 735mm
https://www.civilsandutilities.com/p/aco-multidrain-m150d-universal-sump-unit-500-x-185-x-735mm-ACO23158
The ACO MultiDrain™ M150D Universal Sump Unit with UltraSTEEL™ Galvanised Edge Rail and Plastic Silt Bucket 500 x 185 x 735mm (L x W x D) is manufactured from Vienite®, a new polymeric based recycled material. They have 150mm internal width with UltraSTEEL™ galvanised steel protective edge rail. The channels are for use with ACO Drainlock™ bar-less locking gratings and covers.
Features & benefits
- Universal sump allows for connection to all channels
- Outlet options for Ø110mm and Ø160mm pipes and foul air traps
- Plastic silt bucket provided with each unit
- Triple lipped seals for watertight connections
- Has galvanised steel protective edge rail
Specifications
| Product Name | ACO MultiDrain M150D Universal Sump Unit 500 x 185 x 735mm |
| Brand | MultiDrain |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 23158 |
| EAN | 5030810231580 |
| Compliance Approvals | CE marked and fully certified to Load Class D 400 BS EN 1433:2002 |
| Materials |
Plastic
Vienite Steel |
| Commercial Or Domestic Use | Commercial |
| Range | Sump Units |
| Model Number | 23158 |
| Colour | Black |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | Germany |
| Finish | Galvanised |
| Recyclable | Yes |
| Product Width | 185 mm |
| Product Weight | 43.4 kg |
| Product Length | 500 mm |
| Product Depth | 735 mm |
| Moisture Resistant | Yes |
