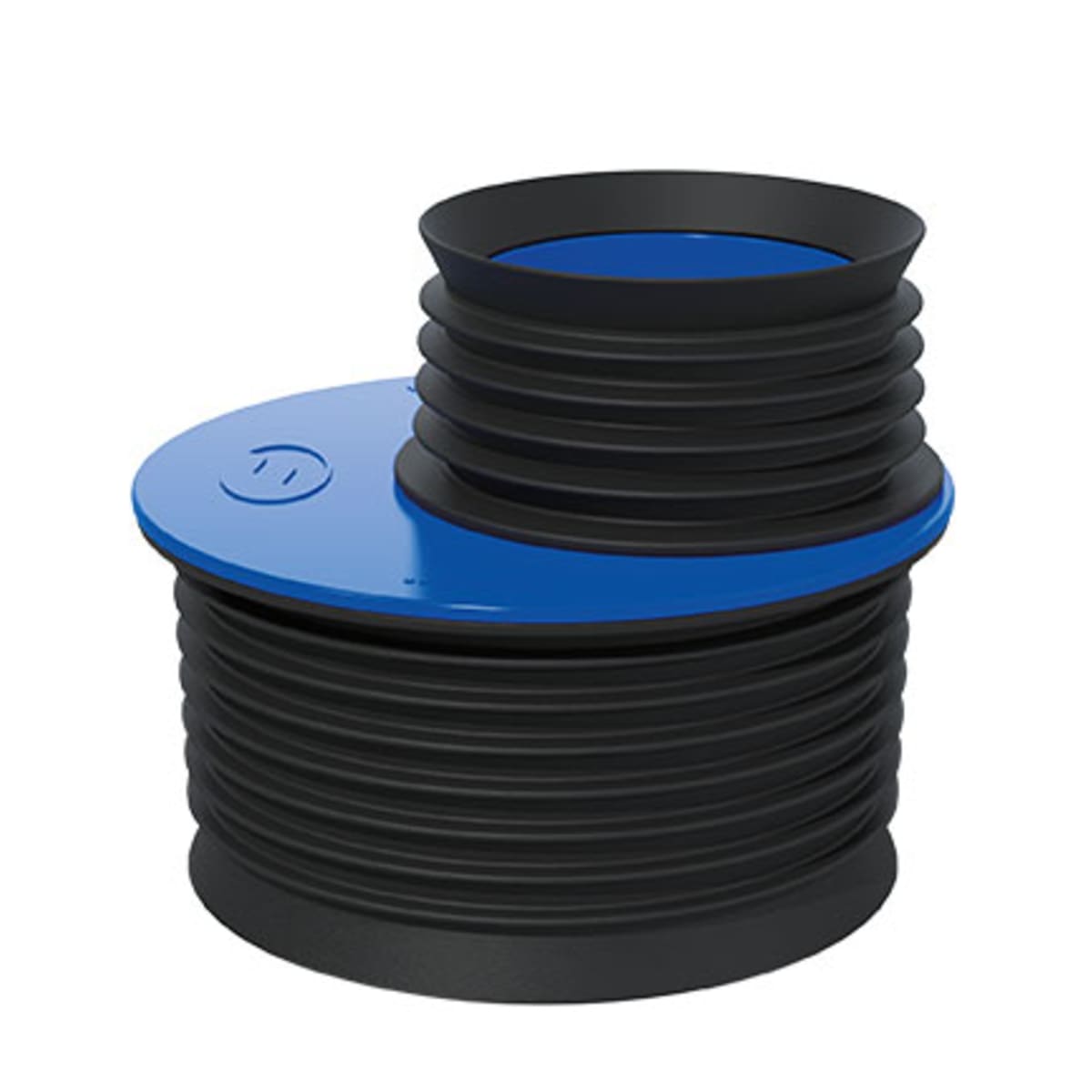

Flexseal Icon Internal Pushfit Coupling DN100-DN150 93-98/148-153mm

SKU: DRF1C095
IDDRF1C095 Drainage > Flexseal Icon Internal Pushfit Coupling DN100-DN150 93-98/148-153mm

Pricing available upon sign in

Alternatively, contact a branch to order

Please log in/register  to save items.

Product information

Flexseal manufactures a wide range of couplings that connect rainwater and wastewater pipelines using the internal surface, called ‘Icon’ (internal connection) couplings. These coupling are perfect when a pipe to be connected on to is encased in concrete or surrounded by another hard material, as they allow the installer to use the internal surace of the pipes to make the connection opposed to the user excavating around the external surface of th epipe to make a connection with a traditional coupling. This change in process saves the user hours in additional unplanned labour time.

Features & benefits
  • Watertight connection on any pipe material
  • Connects pipes of differing or irregular outside diameters
  • Significantly reduces labour time for connecting problem pipes
  • No need to expose external surface of pipe
  • Provides shear load protection
Specifications
Product Name Flexseal Icon Internal Pushfit Coupling DN100-DN150 93-98/148-153mm
Brand Flexseal
Manufacturer Name Flexseal
Manufacturer Part Number IC95-150P
EAN 5031485003731
Compliance Approvals WIS 4-41-01, BS EN 681-1:1996, BS EN 295-4:2013, WRc Approved
Materials Ethylene Propylene Diene Monomer Rubber, ABS plastic
Commercial Or Domestic Use Both
Colour Black, Blue
Pack Quantity 1
Country Of Origin United Kingdom
Applicable Standards ISO 9001
Product Width 172  mm
Product Weight 0.44  kg
Product Height 172  mm
Product Length 141  mm
Product Depth 172  mm
