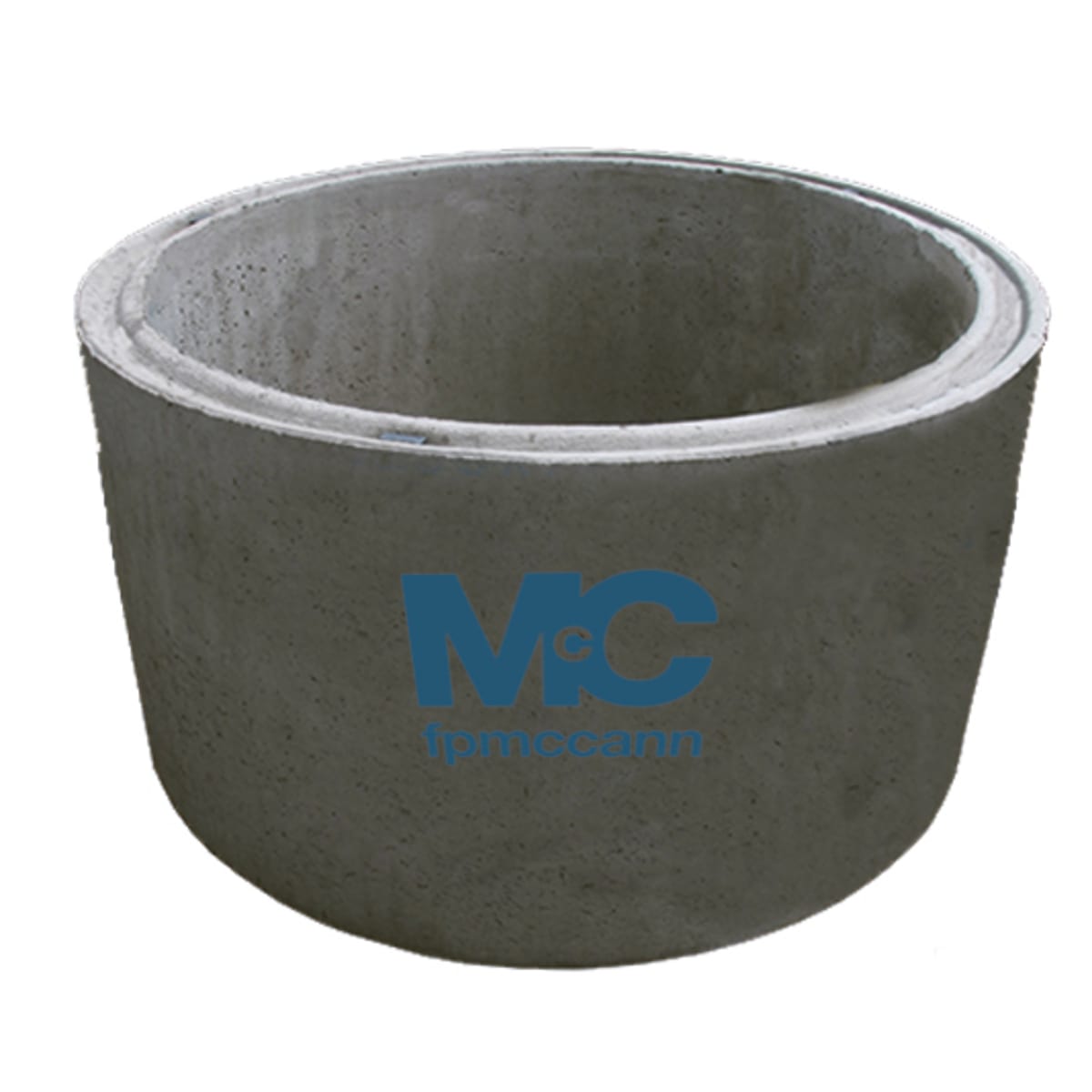

FP McCann Wide Wall Chamber Ring Double Step Irons 1200 x 750mm

SKU: DRCHW579
FP McCann Manhole Wide Wall Chamber Ring with Double Step Irons 1200 x 750 x 130mm (Dia x D x T) manufactued from precast concrete and has been designed with a tongue and groove dimension to accommodate the use of bituminous sealant. The sealant requirement for wide wall manholes is 12mm x 120mm x 6m. When placing the sealing strip into position during installation, the ends of the strips must be overlapped by a minimum of 30mm and cut at an angle of 60 degree. A 130mm thick wide wall chamber, provides a sealed watertight manhole system. This robust design means that the requirement for a concrete surround is eliminated.
Features & benefits
  • Quick and easy installation
  • Watertight structure
  • Safe anchor lifting system
  • No concrete backfill required, in accordance with ‘Sewers for Adoption’ 7th edition
  • More environmentally friendly than a traditional system, almost 40% less carbon emitted during the concrete casting process
IDDRCHW579 Drainage > Concrete Drainage > Wide Wall Chamber Rings > FP McCann Wide Wall Chamber Ring Double Step Irons 1200 x 750mm

You need to be logged in to save items to project lists

FP McCann Manhole Wide Wall Chamber Ring with Double Step Irons 1200 x 750 x 130mm (Dia x D x T) manufactued from precast concrete and has been designed with a tongue and groove dimension to accommodate the use of bituminous sealant. The sealant requirement for wide wall manholes is 12mm x 120mm x 6m. When placing the sealing strip into position during installation, the ends of the strips must be overlapped by a minimum of 30mm and cut at an angle of 60 degree. A 130mm thick wide wall chamber, provides a sealed watertight manhole system. This robust design means that the requirement for a concrete surround is eliminated.
Features & benefits
  • Quick and easy installation
  • Watertight structure
  • Safe anchor lifting system
  • No concrete backfill required, in accordance with ‘Sewers for Adoption’ 7th edition
  • More environmentally friendly than a traditional system, almost 40% less carbon emitted during the concrete casting process

Specifications
Product Name FP McCann Wide Wall Chamber Ring Double Step Irons 1200 x 750mm
Brand FP McCann
Manufacturer Name FP McCann
Manufacturer Part Number DRCHW579
Compliance Approvals CE Marked
Materials Precast Concrete
Commercial Or Domestic Use Commercial
Range Manhole Chamber Rings
Colour Grey
Application External
Pack Quantity 1
Country Of Origin United Kingdom
Recyclable Yes
Product Depth 750  mm
Diameter 200  mm
Thickness 130  mm
Moisture Resistant Yes
