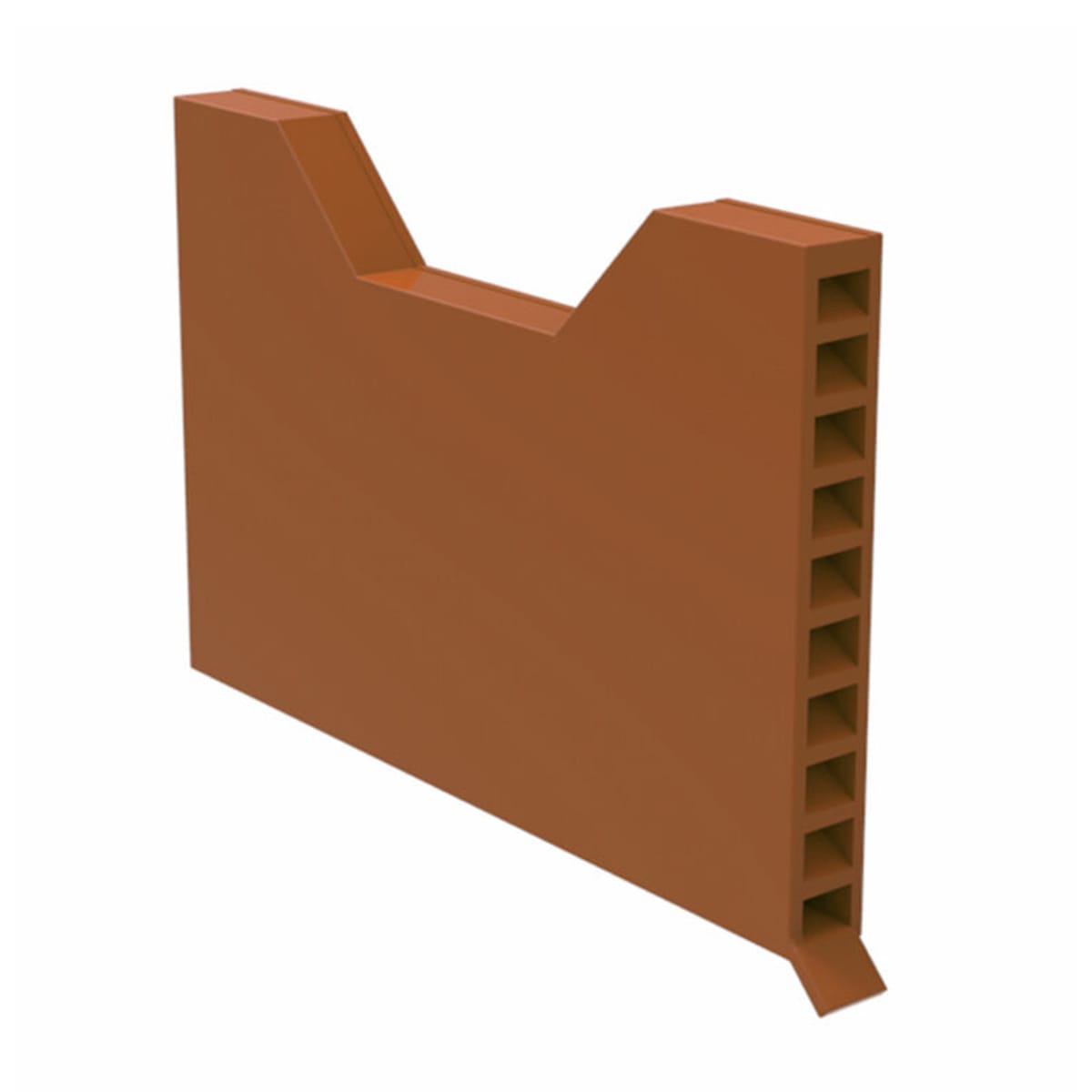

Manthorpe Weep Vent 100 x 65 x 9mm Terracotta

SKU: RFMG950T
The Manthorpe Weep Vent 100 x 65 x 9mm (L x W x T) Terracotta is designed to drain lintels, cavity trays and to ventilate cavity walls. The vent can be slotted between two bricks and mortared into position. It provides an unobtrusive ventilation or drainage point for the cavity behind. The vent has a baffled grille to prevent the ingress of driving rain and wind whilst incorporating an insect grille and drip lip. This grille is sized to keep out large insects but is wide enough that it will not be blocked by debris, paint or water droplets. When used with the Manthorpe range of catchment trays the weep vent should be placed in the furthest corner away from the finished roof line.
Features & benefits
  • Provides 220mm² ventilation air flow
  • Drains water from DPC, lintels and abutment cavity trays
  • Can be used to ventilate timber frame cavity wall details
  • Sits discreetly within the perp joint between two bricks
  • In-built drip lip sheds moisture away from the brick face
IDRFMG950T Bricks, Blocks & Aggregates > Ventilation > Vents > Manthorpe Weep Vent 100 x 65 x 9mm Terracotta

You need to be logged in to save items to project lists

The Manthorpe Weep Vent 100 x 65 x 9mm (L x W x T) Terracotta is designed to drain lintels, cavity trays and to ventilate cavity walls. The vent can be slotted between two bricks and mortared into position. It provides an unobtrusive ventilation or drainage point for the cavity behind. The vent has a baffled grille to prevent the ingress of driving rain and wind whilst incorporating an insect grille and drip lip. This grille is sized to keep out large insects but is wide enough that it will not be blocked by debris, paint or water droplets. When used with the Manthorpe range of catchment trays the weep vent should be placed in the furthest corner away from the finished roof line.
Features & benefits
  • Provides 220mm² ventilation air flow
  • Drains water from DPC, lintels and abutment cavity trays
  • Can be used to ventilate timber frame cavity wall details
  • Sits discreetly within the perp joint between two bricks
  • In-built drip lip sheds moisture away from the brick face

Specifications
Product Name Manthorpe Weep Vent 100 x 65 x 9mm Terracotta
Brand Manthorpe
Manufacturer Name Manthorpe Building Products
Manufacturer Part Number G950TR
EAN 5038108000887
Compliance Approvals BS8000
Materials Polypropylene
Commercial Or Domestic Use Both
Range Weep Vents
Model Number G950
Colour Terracotta
Application Interior
Pack Quantity 1
Country Of Origin United Kingdom
Recyclable Yes
Product Width 65  mm
Product Weight 0.21  g
Product Length 100  mm
Thickness 9  mm
