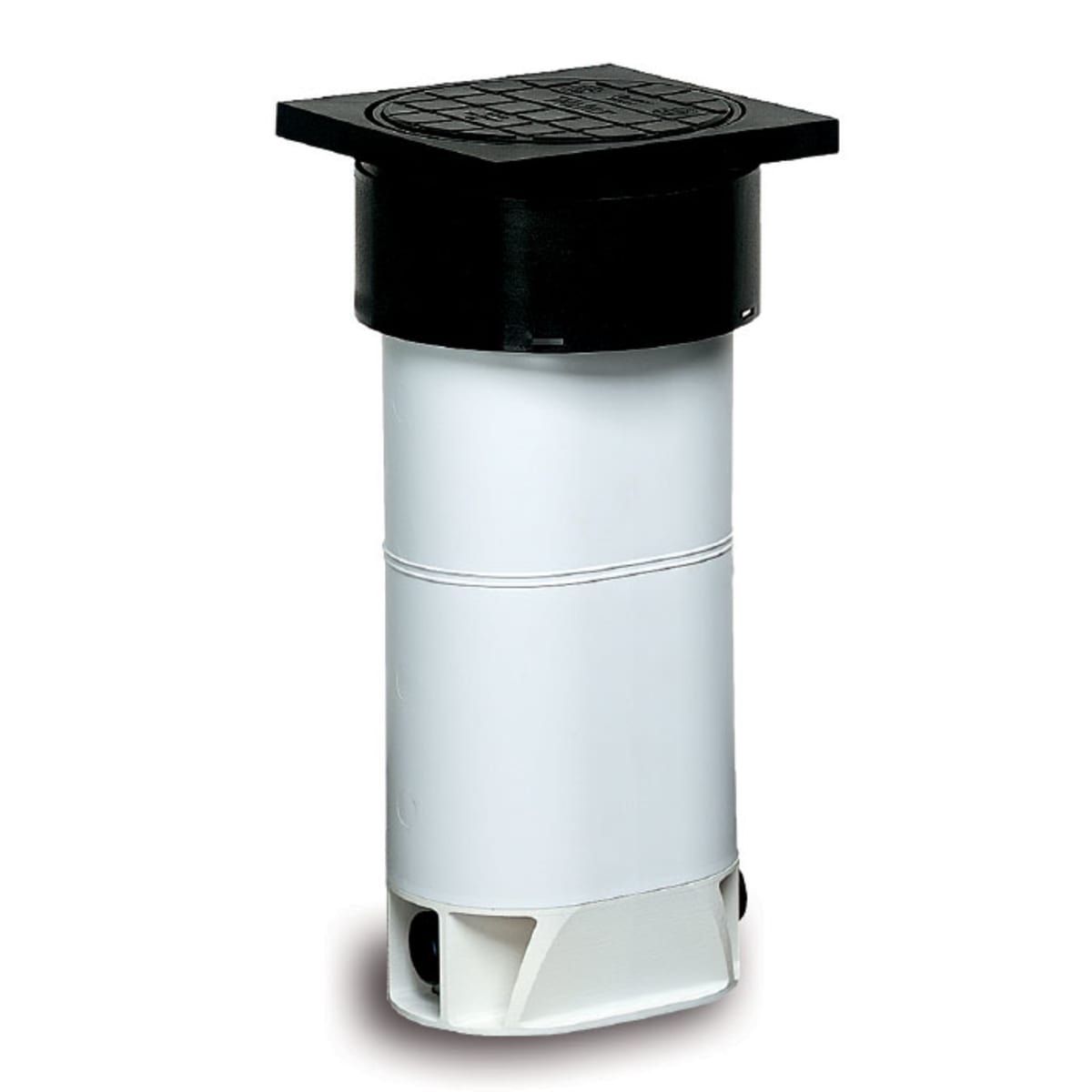

Matrix Below Ground Boundary Box 25mm
The Matrix Below Ground Boundary Box 25mm is a self-contained, telescopic chamber system that is used to provide a clean and safe environment for concentric meters. Offers excellent visibility and access to both the meter and control valve is provided by the surface box lid. The 16 bar pressure rating gives excellent performance that exceedes even the typical 12 bar pipe pressure rating. Connection: 25mm PF.
- Load bearing capacity of over 20 kN
- Greatly reduces the risk of leaks
- Fully designed and tested to WIS specifications
- Comes with a flexible connection system
- Height adjustement from 470 - 850mm
The Matrix Below Ground Boundary Box 25mm is a self-contained, telescopic chamber system that is used to provide a clean and safe environment for concentric meters. Offers excellent visibility and access to both the meter and control valve is provided by the surface box lid. The 16 bar pressure rating gives excellent performance that exceedes even the typical 12 bar pipe pressure rating. Connection: 25mm PF.
- Load bearing capacity of over 20 kN
- Greatly reduces the risk of leaks
- Fully designed and tested to WIS specifications
- Comes with a flexible connection system
- Height adjustement from 470 - 850mm
| Product Name | Matrix Below Ground Boundary Box 25mm |
| Brand | Matrix |
| Manufacturer Name | TALIS UK |
| Manufacturer Part Number | E8951 |
| Compliance Approvals | WRAS Approved |
| Materials | Mineral Filled Polypropylene |
| Range | Below Ground Boundary Boxes |
| Colour | White/Black |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Product Weight | 4.5 kg |
| Product Height | 850 mm |
| Product Depth | 227 mm |
| Diameter | 173 mm |
| Jointing System | Push_Fit |
