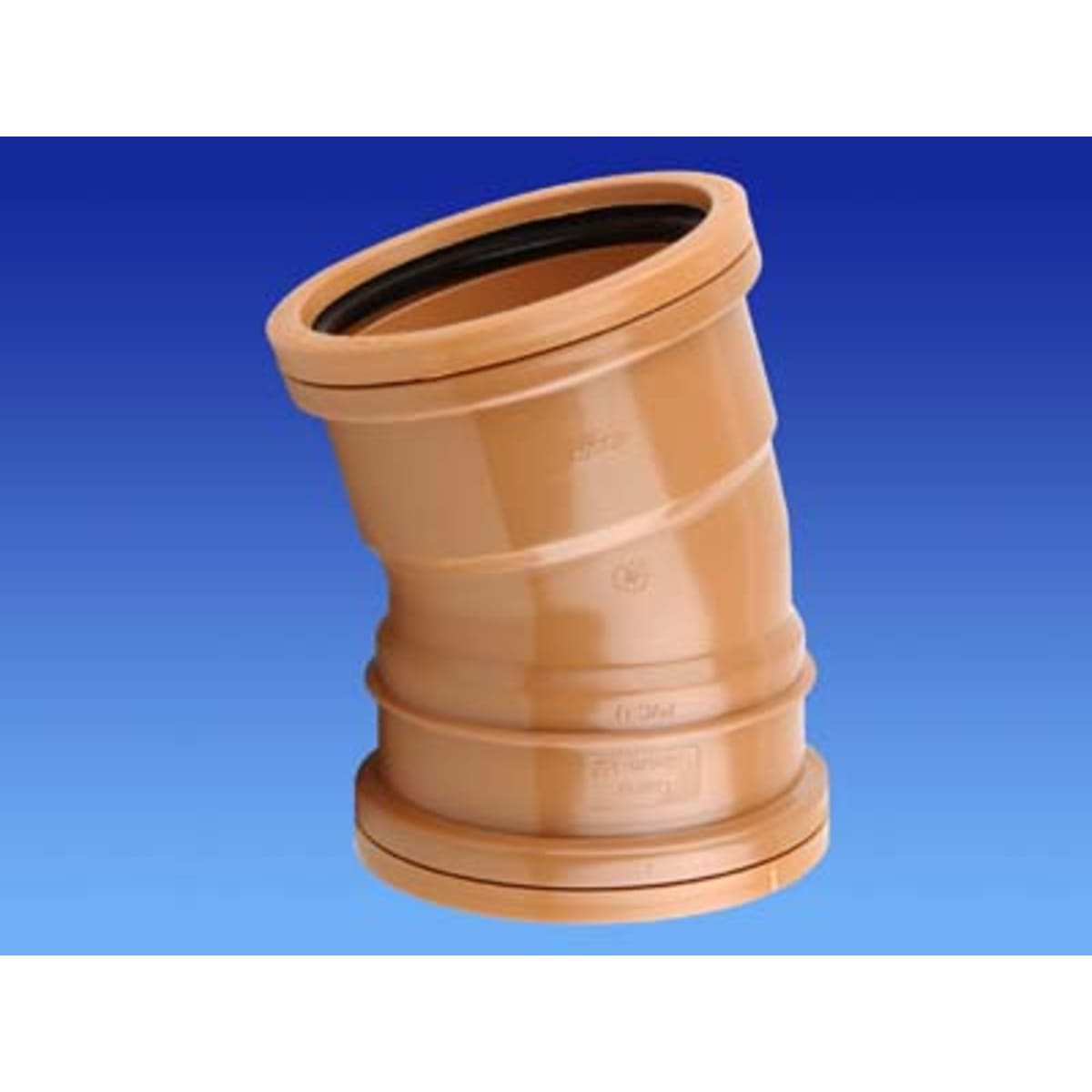

Osma 15° Double Socket Bend 75 x 160mm Brown

SKU: PO6D567Z
The Osma Double Socket Short Radius Bend 15° 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. With a thickness of 4.1mm and bow range of 165mm, the bend is highly strong and durable. It is made with cut out marks to convert to a channel bend for use within traditional manholes.
Features & benefits
  • Recyclable
  • Resistant to most acidic, alkaline solutions
IDPO6D567Z Drainage > Underground Drainage > House Drain > Osma 15° Double Socket Bend 75 x 160mm Brown

You need to be logged in to save items to project lists

The Osma Double Socket Short Radius Bend 15° 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. With a thickness of 4.1mm and bow range of 165mm, the bend is highly strong and durable. It is made with cut out marks to convert to a channel bend for use within traditional manholes.
Features & benefits
  • Recyclable
  • Resistant to most acidic, alkaline solutions

Specifications
Product Name Osma 15° Double Socket Bend 75 x 160mm Brown
Brand Osma
Manufacturer Name Wavin
Manufacturer Part Number 6D567
EAN 5011479109106
Compliance Approvals BS EN 13476 & BS EN 1401-1
Warranty Period 12  months
Materials PVC-U
Commercial Or Domestic Use Both
Range Double Socket Bend
Model Number 6D567
Colour Golden brown
Application internal/external
Pack Quantity 1
Country Of Origin United Kingdom
Finish Smooth
Recyclable Yes
Renewable No
Product Width 190  mm
Product Weight 1.02  kg
Product Height 252  mm
Product Length 252  mm
Diameter 160  mm
Moisture Resistant Yes
Angle 15  degrees
