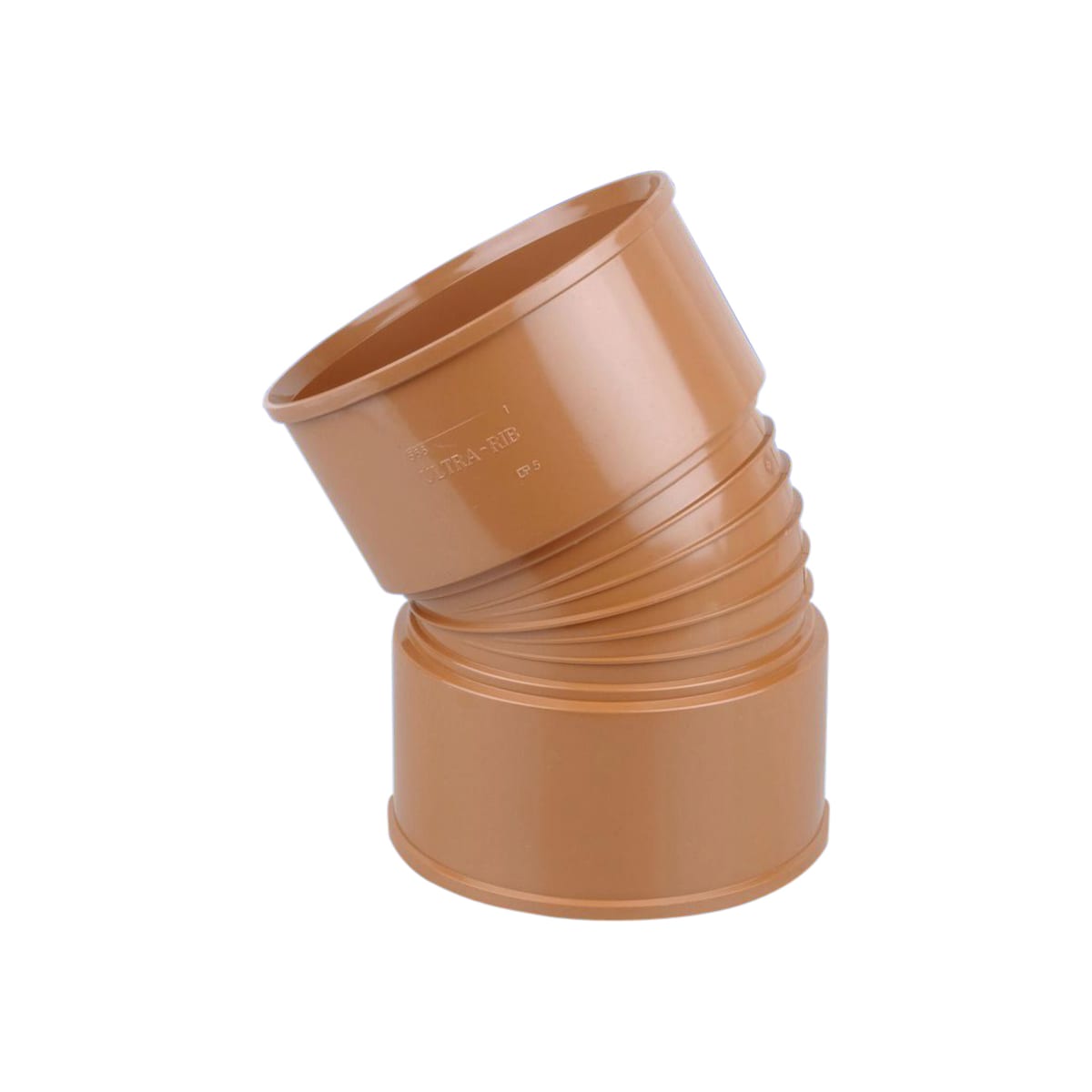

Osma UltraRib 30° Double Socket Bend 225mm

IDPO9UR566 Drainage > Sewer Drain > Ultra-Rib > Osma UltraRib 30° Double Socket Bend 225mm

Pricing available upon sign in

Alternatively, contact a branch to order

Please log in/register  to save items.

Product information

The Osma Ultrarib Double Socket Short Radius Bend 30° 225mm (Dia) Brown made from unplasticised polyvinyl chloride is a double socket bend used for drainage applications. Being demountable, the bend is provided with a push-fit joint system. The bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both a sealing and expansion joint. The installation of the pipe is done by laying it on trench bottom and making small depressions to accommodate the pipe or fitting socket. The pipes rest on lengths of barrel after several adjustments. With the thickness of 25mm and bow range of 150mm, the bend is highly strong and durable. It is manufactured with cut-out marks to convert to a channel bend for use within traditional manholes. Osma, a brand of Wavin, the world leader in plastic pipe systems for residential, non-residential and civil engineering projects.

Features & benefits
  • High salt erosion resistant owing to its make
  • Corrosion-resistant
  • Kitemarked to BS EN 13476-3
Product Name Osma UltraRib 30° Double Socket Bend 225mm
Brand Osma
Manufacturer Name Wavin
Manufacturer Part Number 9UR566
EAN 5011479112496
Compliance Approvals BBA Approved
Warranty Period 12  months
Materials PVC-U
Commercial Or Domestic Use Both
Range Double Socket Bend
Model Number 9UR566
Colour Golden brown
Application External
Pack Quantity 1
Country Of Origin Netherlands
Applicable Standards ISO 9001
Finish Ribbed
Recyclable Yes
Renewable No
Product Width 275  mm
Product Weight 2.45  kg
Product Height 329  mm
Product Length 352  mm
Diameter 225  mm
Moisture Resistant Yes
Angle 30  degrees
