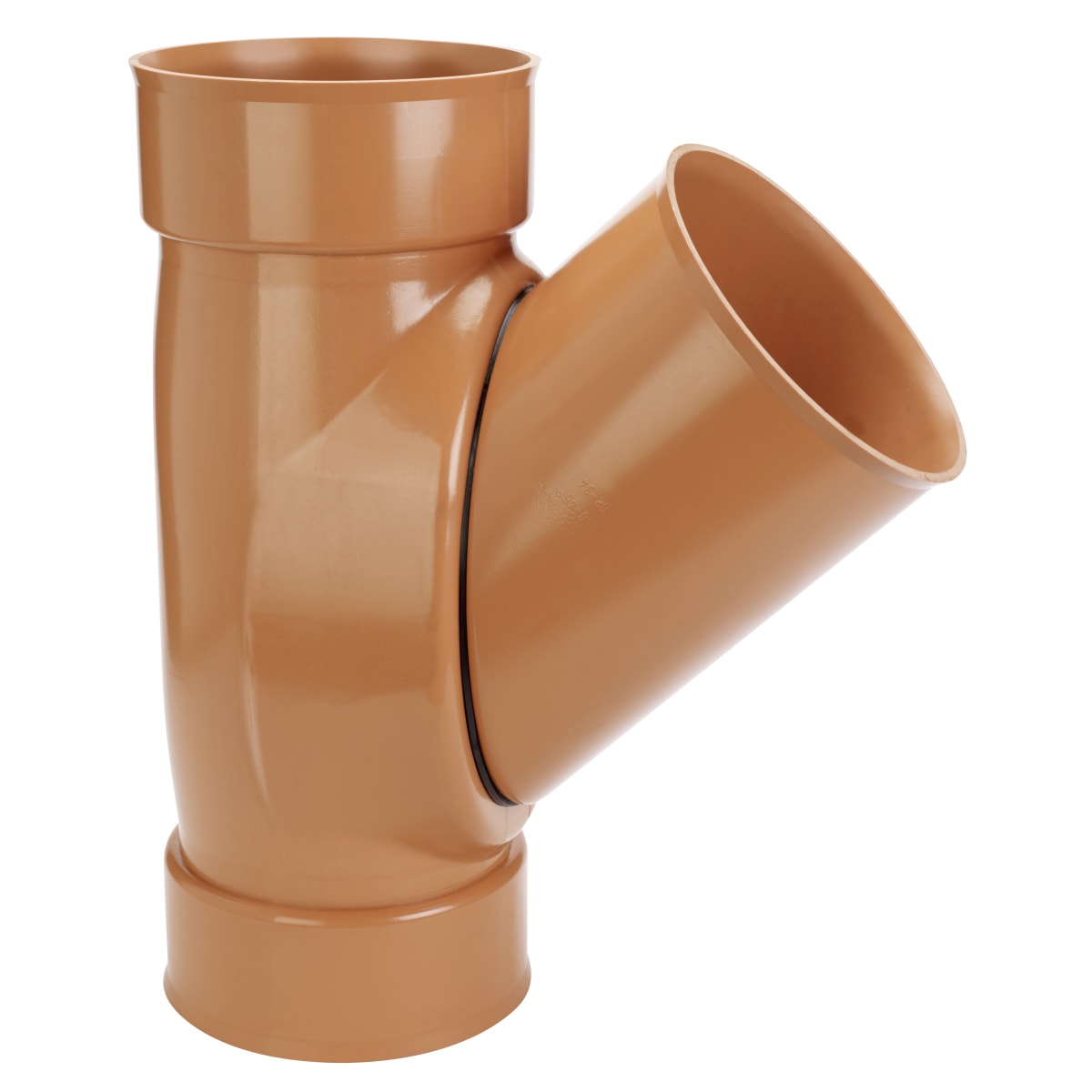

Osma UltraRib 45° Equal Junction 225mm Brown

SKU: PO9UR213
IDPO9UR213 Drainage > Sewer Drain > Ultra-Rib > Osma UltraRib 45° Equal Junction 225mm Brown

Pricing available upon sign in

Alternatively, contact a branch to order

Please log in/register  to save items.

Product information

The Osma Ultrarib Equal Junction 45° 225mm Dia Brown made from unplasticised polyvinyl chloride is used for drainage applications at a depth of 10m. Being fast and demountable, since the junction is provided with the push-fit joint system. The equal junction is supplied with sockets on all ends. The sockets are fitted with ring seals which acts as both a sealing and expansion joint. The installation of pipe is done by cutting it cleanly, at right angles to its axis and then fitting at one end of the pipe through push-fit system. With SN8 stiffness class, the quality assured junction is highly strong and durable. It is manufactured with cut out marks to convert to a channel bend for use within traditional manholes, making it suitable for use of pipe and fittings in foul water systems. Osma, a brand of Wavin, the world leader in plastic pipe systems for residential, non-residential and civil engineering projects. Wavin provides effective solutions for essential needs of daily life: safe distribution of drinking water; sustainable management of rainwater and waste water; energy-efficient heating and cooling for buildings.

Features & benefits
  • High salt erosion resistant owing to its make
  • Corrosion-resistant
  • Kitemarked to BS EN 13476-3
Specifications
Product Name Osma UltraRib 45° Equal Junction 225mm Brown
Brand Osma
Manufacturer Name Wavin
Manufacturer Part Number 9UR213
EAN 5011479112427
Compliance Approvals BBA Approved
Warranty Period 12  months
Materials PVC-U
Commercial Or Domestic Use Both
Range Junction
Model Number 9UR213
Colour Golden brown
Application External
Pack Quantity 1
Country Of Origin Netherlands
Applicable Standards ISO 9001
Finish Smooth
Recyclable Yes
Renewable No
Product Width 292  mm
Product Weight 8.5  kg
Product Height 570  mm
Product Length 677  mm
Diameter 225  mm
Moisture Resistant Yes
Angle 45  degrees
