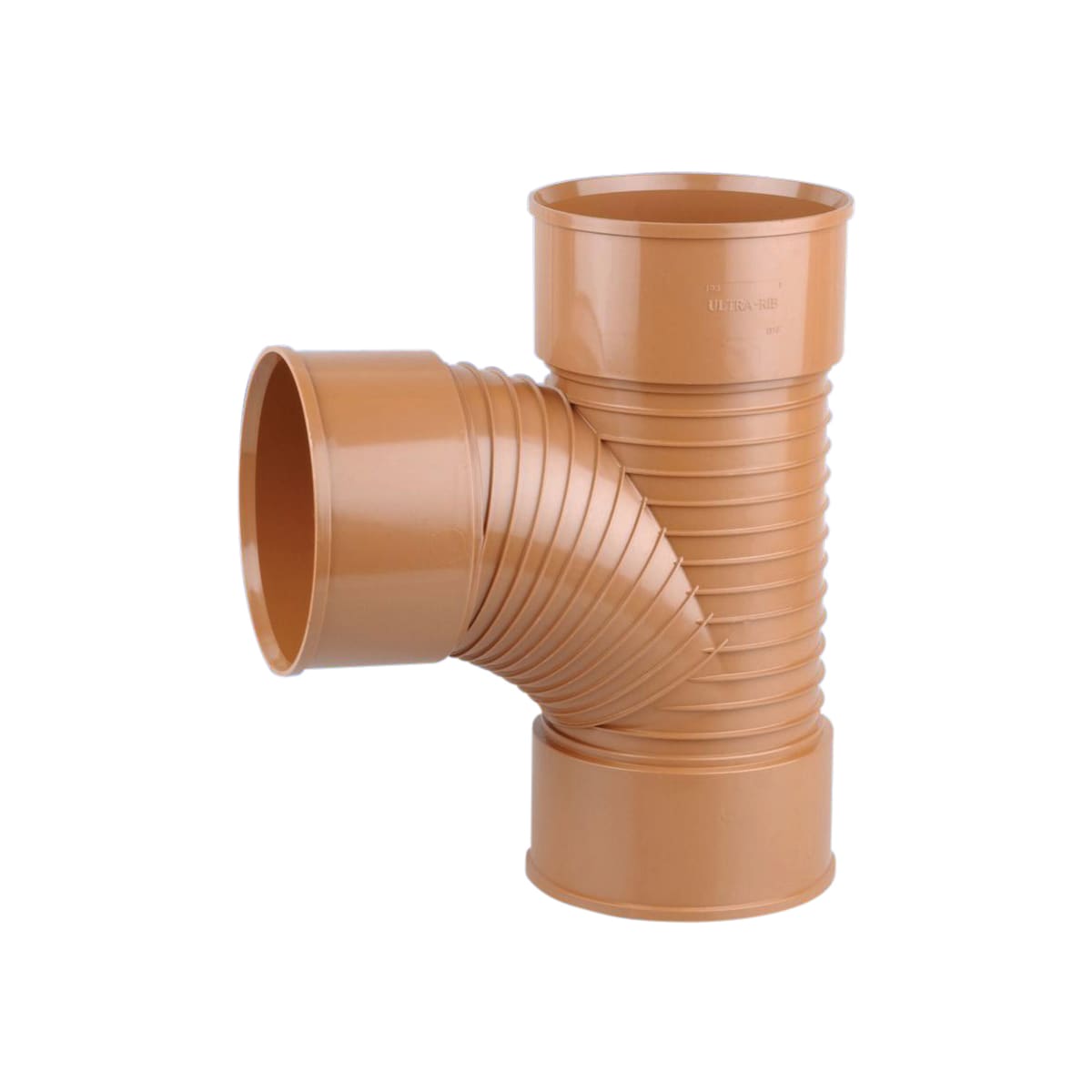

Osma UltraRib 87.5° Equal Junction 150mm Brown

SKU: PO6UR193
IDPO6UR193 Drainage > Sewer Drain > Ultra-Rib > Osma UltraRib 87.5° Equal Junction 150mm Brown

Pricing currently unavailable

Please contact a branch to order

Please log in/register  to save items.

Product information

The Osma Ultrarib Equal Junction 87.5° 150mm Dia Brown made from unplasticised polyvinyl chloride is a double socket bending used for drainage applications with depth of 10m. Being fast and demountable, since the bend is provided with the push-fit joint system. The junction is supplied with sockets on all ends. The sockets are fitted with ring seals which acts as both a sealing and expansion joint. The installation of pipe is done by cutting it cleanly, at right angles to its axis and then fitting at one end of the pipe through push-fit system. With SN8 stiffness class, the quality assured junction is highly strong and durable. It is manufactured with cut out marks to convert to a channel bend for use within traditional manholes, making it suitable for use in gravity drainage and sewer installations. Osma, a brand of Wavin, the world leader in plastic pipe systems for residential, non-residential and civil engineering projects. Wavin provides effective solutions for essential needs of daily life: safe distribution of drinking water; sustainable management of rainwater and waste water; energy-efficient heating and cooling for buildings.

Features & benefits
  • High salt erosion resistant owing to its make
  • Corrosion-resistant
  • Kitemarked to BS EN 13476-3
Specifications
Product Name Osma UltraRib 87.5° Equal Junction 150mm Brown
Brand Osma
Manufacturer Name Wavin
Manufacturer Part Number 6UR193
EAN 5011479111901
Compliance Approvals BBA Approved
Warranty Period 12  months
Materials PVC-U
Commercial Or Domestic Use Both
Range Junctions
Model Number 6UR193
Colour Golden brown
Application External
Pack Quantity 1
Country Of Origin United Kingdom
Applicable Standards ISO 9001
Finish Ribbed
Recyclable Yes
Renewable No
Product Width 189  mm
Product Weight 1.76  kg
Product Height 345  mm
Product Length 405  mm
Diameter 150  mm
Moisture Resistant Yes
Angle 87.5  degrees
