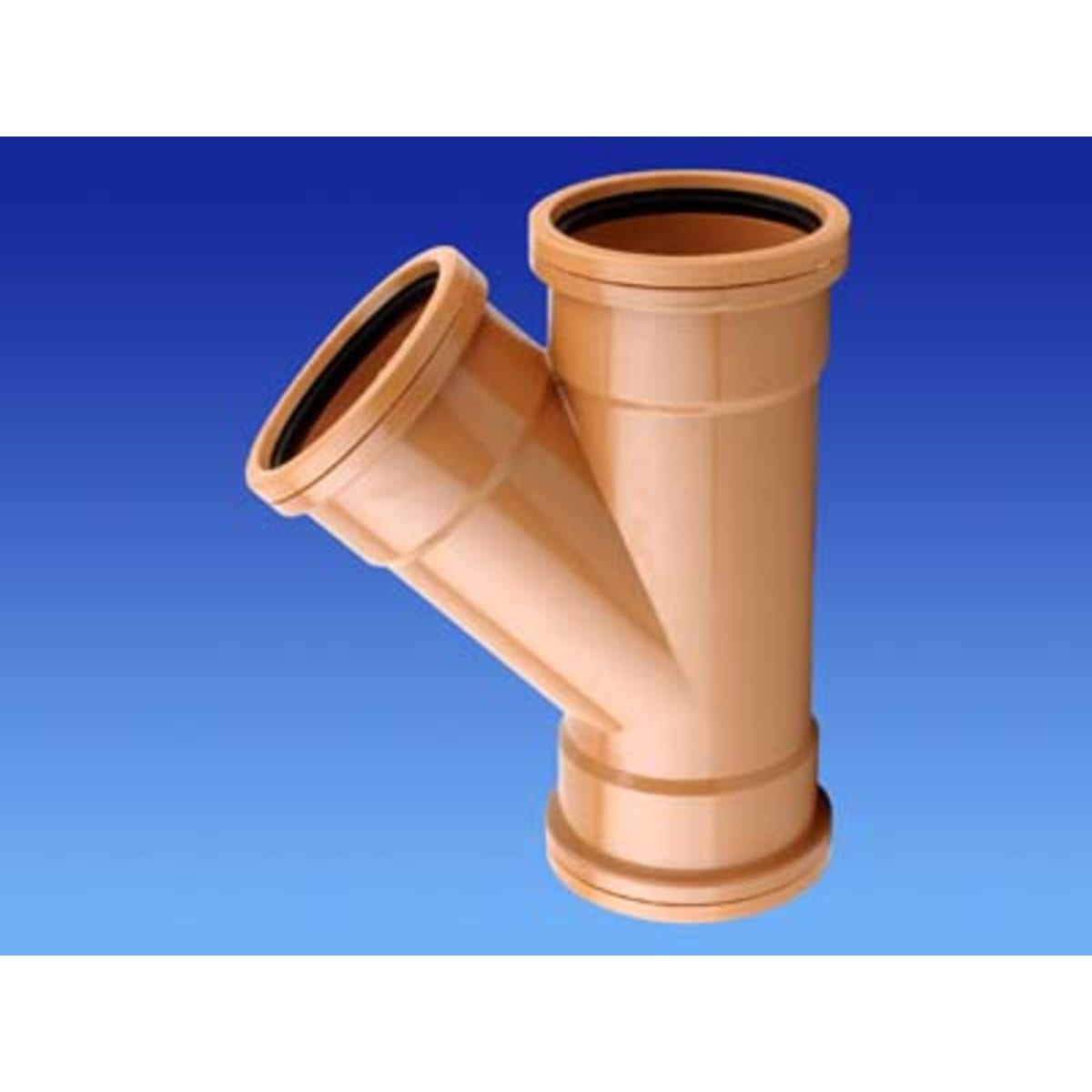

OsmaDrain 45° Double Socket Junction 75 x 160mm Brown
SKU: PO6D213Z
The OsmaDrain 45° Double Socket Junction 75 x 160mm (L x Dia) Brown is BBA approved. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The junction is supplied with sockets on all ends. The sockets are fitted with ring seals which acts as both a sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. The double socket junction is built in with a stiffness class of SN8. It is made with cut out marks to convert to a channel bend for use within traditional manholes. Making it suitable for use in gravity drainage and sewer installations.
Features & benefits
- Recyclable
- Corrosion resistant
IDPO6D213Z
Drainage > Underground Drainage > House Drain > OsmaDrain 45° Double Socket Junction 75 x 160mm Brown
https://www.civilsandutilities.com/p/osmadrain-double-socket-junction-45-degrees-75-x-160mm-brown-PO6D213Z
The OsmaDrain 45° Double Socket Junction 75 x 160mm (L x Dia) Brown is BBA approved. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The junction is supplied with sockets on all ends. The sockets are fitted with ring seals which acts as both a sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. The double socket junction is built in with a stiffness class of SN8. It is made with cut out marks to convert to a channel bend for use within traditional manholes. Making it suitable for use in gravity drainage and sewer installations.
Features & benefits
- Recyclable
- Corrosion resistant
Specifications
| Product Name | OsmaDrain 45° Double Socket Junction 75 x 160mm Brown |
| Brand | Osma |
| Manufacturer Name | Wavin |
| Manufacturer Part Number | 6D213 |
| EAN | 5011479108918 |
| Compliance Approvals | BS EN 13476 & BS EN 1401-1 |
| Warranty Period | 12 months |
| Materials | PVC-U |
| Commercial Or Domestic Use | Both |
| Range | Double Socket Junction |
| Model Number | 6D213 |
| Colour | Golden brown |
| Application | internal/external |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Smooth |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 190 mm |
| Product Weight | 2.45 kg |
| Product Height | 376 mm |
| Product Length | 442 mm |
| Diameter | 160 mm |
| Moisture Resistant | Yes |
| Angle | 45 degrees |
