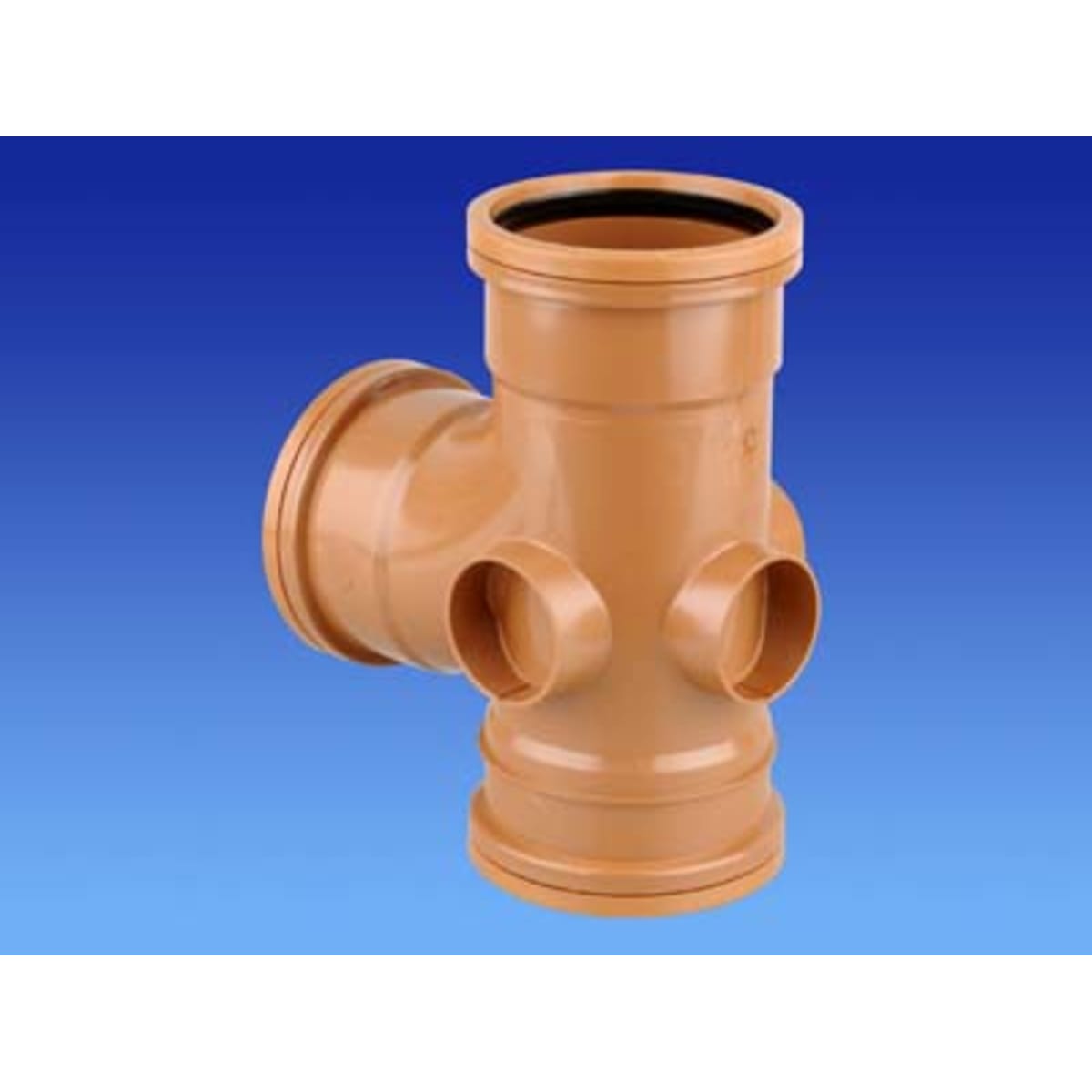

OsmaDrain 87.5° Double Socket Junction 75 x 160mm Brown
SKU: PO6D193Z
The OsmaDrain Double Socket Junction 75 x 160mm (L x Dia) Brown is designed with a 87.5° angle bend. The product is manufactured from uPVC and is used for drainage applications with depths of 10m. The junctions are easy to demount. The junction is supplied with sockets on all ends and is BBA approved. The sockets are fitted with ring seals, which act as both a sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. Made with cut-out marks to convert to a channel bend for use within traditional manholes. Making it suitable for use in gravity drainage and sewer installations.
Features & benefits
- Prevents salt erosion
- Corrosion resistant
IDPO6D193Z
Drainage > Underground Drainage > House Drain > OsmaDrain 87.5° Double Socket Junction 75 x 160mm Brown
https://www.civilsandutilities.com/p/osmadraindouble-socket-junction-87-5-degrees-75-x-160mm-brown-PO6D193Z
The OsmaDrain Double Socket Junction 75 x 160mm (L x Dia) Brown is designed with a 87.5° angle bend. The product is manufactured from uPVC and is used for drainage applications with depths of 10m. The junctions are easy to demount. The junction is supplied with sockets on all ends and is BBA approved. The sockets are fitted with ring seals, which act as both a sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. Made with cut-out marks to convert to a channel bend for use within traditional manholes. Making it suitable for use in gravity drainage and sewer installations.
Features & benefits
- Prevents salt erosion
- Corrosion resistant
Specifications
| Product Name | OsmaDrain 87.5° Double Socket Junction 75 x 160mm Brown |
| Brand | Osma |
| Manufacturer Name | Wavin |
| Manufacturer Part Number | 6D193 |
| EAN | 5011479108864 |
| Compliance Approvals | BS EN 13476 & BS EN 1401-1 |
| Warranty Period | 12 months |
| Materials | PVC-U |
| Commercial Or Domestic Use | Both |
| Range | Double Socket Junction |
| Model Number | 6D193 |
| Colour | Golden brown |
| Application | internal/external |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Smooth |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 200 mm |
| Product Weight | 2.12 kg |
| Product Height | 317 mm |
| Product Length | 386 mm |
| Diameter | 160 mm |
| Moisture Resistant | Yes |
| Angle | 87.5 degrees |
