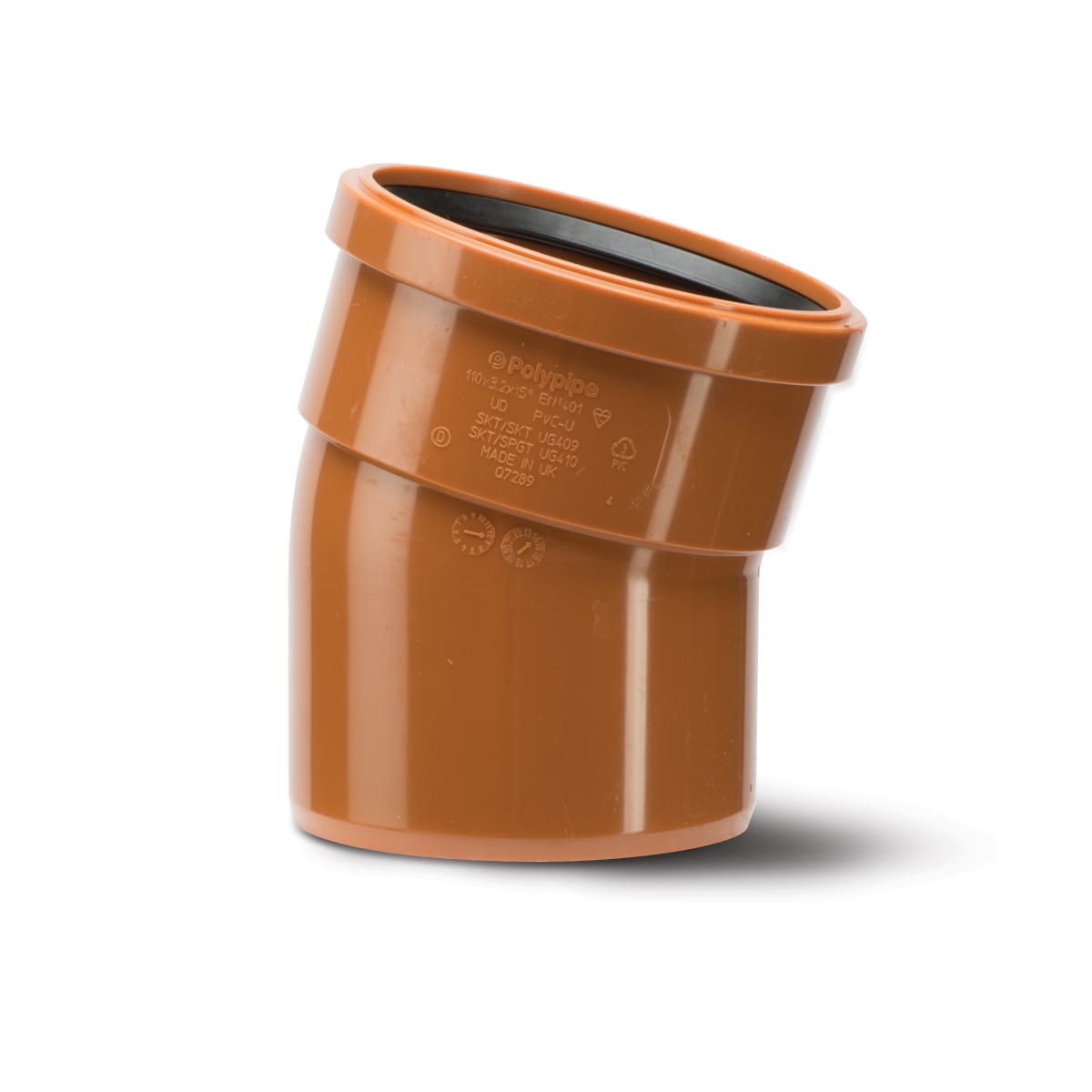

Polypipe Drain 15° Single Socket Bend 160mm Terracotta

SKU: DRPYP260
IDDRPYP260 Utilities > Gas > PE Pipe > Polypipe Drain 15° Single Socket Bend 160mm Terracotta

Pricing available upon sign in

Alternatively, contact a branch to order

Please log in/register  to save items.

Product information

The Polypipe Underground Drain 15° Single Socket Bend 160mm Dia Terracotta is manufactured from uPVC. The single socket is fitted to the pipes by a push fit mechanism. The product is bent at an angle of 15° and fitted to the pipes at ease. It is used on both surface and underground drain applications. The ring seal provides tight seal around the pipes, preventing wastage of water.

Features & benefits
  • Holds all the relevant certificates and approvals, including BS EN 1401 and BS4660:2000 where applicable
  • Manufactured in PVCu to provide strength, durability and ease of installation
  • Innovative seal and snap-cap system allows push fit joints
  • Matching selection of fittings and ancillaries
Specifications
Product Name Polypipe Drain 15° Single Socket Bend 160mm Terracotta
Brand Polypipe
Manufacturer Name Polypipe
Manufacturer Part Number UG610
EAN 5022733017280
Compliance Approvals BS EN 1401 and BS4660:2000 where applicable
Warranty Period 12  months
Materials Polyvinyl chloride
Commercial Or Domestic Use Domestic
Range Single Socket Bends
Colour Terracotta
Application External
Pack Quantity 1
Country Of Origin United Kingdom
Applicable Standards BS EN 1401 and BS4660:2000 where applicable
Product Width 185  mm
Product Weight 0.676  kg
Diameter 160  mm
Volume 0.0071595  m3
Thickness 215  mm
Jointing System Push Fit
Angle 15  degrees
